Manufacturing Process

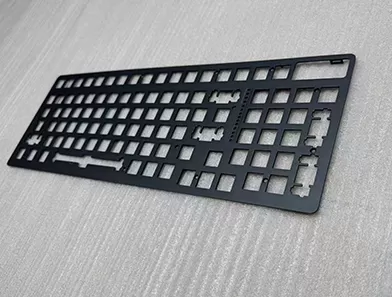

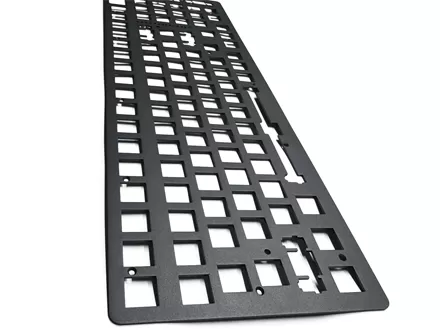

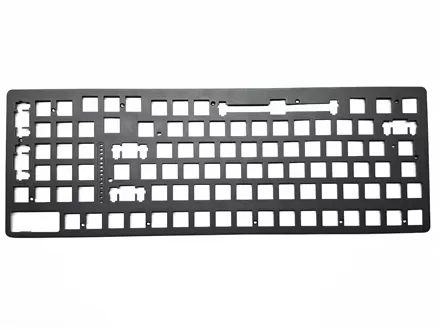

The production of an aluminum keyboard bottom cover requires precision at every stage to ensure durability, aesthetics, and perfect fit with the keyboard’s overall design. The process begins with cutting high-quality aluminum alloy plates to the required size. This prepares the raw material for the subsequent forming steps.

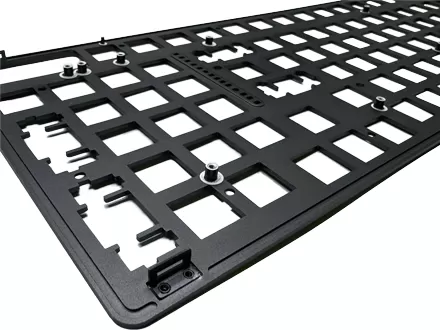

Next, the aluminum plates go through a stamping process, where powerful stamping presses shape the plates into the general structure of the keyboard base. This step quickly produces the overall frame, including key contours and openings, while maintaining excellent consistency across batches.
Once the overall shape is formed, the semi-finished parts are transferred to a CNC machining center for milling. Here, high-speed cutting tools refine intricate features such as screw holes, cable passages, grooves, and other fine structural details that stamping alone cannot achieve. CNC milling also ensures tight tolerances and smooth surfaces, critical for precision assembly and long-term durability.

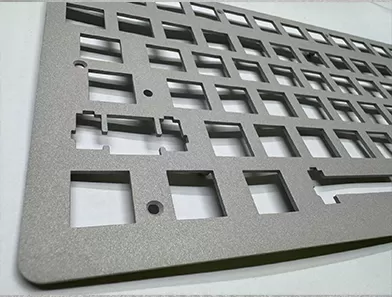

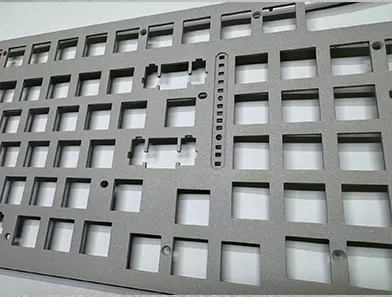

After machining, the parts undergo press riveting to strengthen structural connections. Following assembly, the covers are processed with a combination of grinding, sandblasting, and anodizing. Grinding creates smooth edges, sandblasting gives a uniform matte texture, and anodizing enhances corrosion resistance, durability, and surface hardness while providing a high-end appearance.
To ensure the surface finish meets exact requirements, every piece is subjected to strict anodized color inspections. This includes a visual check for surface integrity, colorimeter measurements for color accuracy, and thread testing with go/no-go gauges to confirm precise screw hole dimensions.

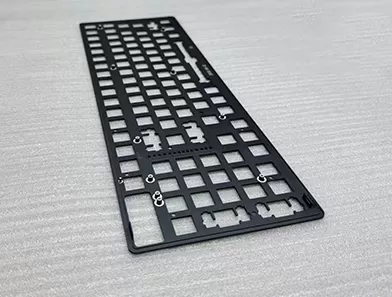

Additional customization is achieved through laser marking, where icons, numbers, or brand logos are engraved permanently onto the aluminum surface. Finally, each finished keyboard bottom cover undergoes a comprehensive inspection before being carefully packaged to prevent damage during shipping.
Advantages of Combining Stamping and CNC Machining
This project demonstrates the strength of combining stamping and CNC machining, leveraging the unique benefits of both processes to achieve efficiency, precision, and cost-effectiveness.
Advantages of Stamping
• High Efficiency: Stamping is ideal for large-scale production, quickly forming the overall structure with minimal cycle times.
• Excellent Material Utilization: Optimized stamping dies minimize waste and reduce raw material costs.
• Stable Quality: Produces consistent shapes and dimensions across thousands of units, ensuring uniformity.
• Cost-Effective for Mass Production: Once tooling is set up, stamping offers low per-unit production costs.
• Design Repeatability: Reliable reproduction of complex structural outlines, perfect for high-volume consumer electronics.
Advantages of CNC Machining
• High Precision: Achieves fine details, tight tolerances, and smooth finishes required for assembly and long-term use.
• Reduced Tooling Requirements: No need for complex molds or dies to produce intricate features, saving time and cost.
• Complex Geometry Capability: Can machine detailed surfaces, undercuts, and internal structures that stamping or conventional methods cannot handle.
• Flexibility for Customization: Easily adapts to design modifications, enabling small-batch customization alongside large-scale production.
• Superior Surface Quality: Provides refined finishes that improve both functionality and aesthetics.
• Supports Mixed-Volume Production: Effective for both prototypes and full production runs, giving customers flexibility in order sizes.
By integrating stamping for structural efficiency and CNC machining for detailed precision, we ensure that our aluminum keyboard bottom covers are not only durable and lightweight but also aesthetically refined and ready for high-performance applications.
Conclusion
This case study highlights how we combine advanced stamping and CNC machining technologies to deliver high-quality aluminum keyboard bottom covers. Our approach ensures that every component is efficiently produced, precisely engineered, and beautifully finished, making it an excellent choice for manufacturers in the electronics industry.
If you’re looking for a partner to provide precision-machined aluminum components for consumer electronics or other applications, our expertise and proven processes can help you achieve outstanding results.
